Thinking about setting up a grow tent? Don’t skip the ventilation! Trust me, it’s not just about blowing air around. Good ventilation is the secret sauce to happy, healthy plants. Plants need more than just light and water—they breathe, too! Without fresh air, your plants will suffocate in stale, humid conditions. A solid ventilation system prevents mold, controls temperature, and helps plants thrive.
Table of Contents
Understanding The Ventilation System In A Grow Tent

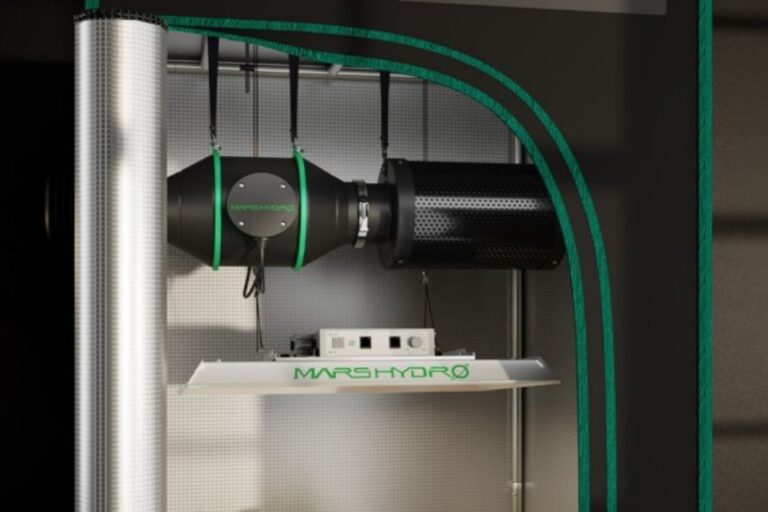

A properly designed ventilation system is the lifeblood of any successful grow tent operation. At the heart of this system lies the inline duct fan, which creates consistent negative pressure within the tent, ensuring a continuous exchange of stale, CO2-depleted air with fresh, oxygen-rich air from outside. This powerful airflow prevents hot spots and humidity buildup while strengthening plant stems through gentle air movement.
The fan’s ducted design allows for flexible installation, either pushing or pulling air through carbon filters for odor control, and its adjustable speed settings let growers fine-tune ventilation precisely to their plants’ needs.
Key Components You’ll Need
Let’s talk gear. Here’s what you need for a complete ventilation system.
Inline Fans: These are your workhorses. They suck air out of the tent and keep everything fresh.
Ducting and Clamps: Ducting connects everything—fan, filter, and vents. Clamps keep it secure and airtight.
Carbon Filters: Say goodbye to that skunky smell. Carbon filters trap odors before the air leaves your tent.
Oscillating Fans: These little guys circulate air inside the tent, preventing dead zones and keeping temps even.
Vent Flaps and Intake Ports: Used for passive air intake, they allow fresh air in when negative pressure is created.
Step-By-Step Guide To Building Your Ventilation System
Step 1: Measure Your Grow Tent Size
Start by measuring your grow tent’s interior dimensions. You’ll need to know the length, width, and height in feet. Multiply these three numbers together to calculate your tent’s total cubic footage. For instance, a standard 4x4x6 foot tent equals 96 cubic feet of air space. This measurement forms the foundation for choosing an appropriately sized fan.
Step 2: Calculate The CFM (Cubic Feet Per Minute)
Cubic Feet per Minute (CFM) indicates how much air your fan needs to move. To determine your minimum CFM requirement:
First, take your tent’s cubic footage. Then multiply this number by 1.25 to compensate for air resistance caused by ducting, filters, and bends in your ventilation system. Using our 4x4x6 tent example: 96 cubic feet × 1.25 = 120 CFM.
For more precise calculations, consider additional factors like heat from grow lights (add 10-20% more CFM) or whether you’re using a carbon filter (requires additional airflow). These adjustments ensure your ventilation system can handle real-world growing conditions.
Step 3: Choose The Right Inline Fan
When choosing a fan, focus on three key specifications: airflow capacity, noise level, and build quality. Your fan’s CFM rating should meet or slightly exceed your calculated requirement. For our 120 CFM example, look for fans rated between 120-150 CFM.
Noise becomes important if your grow space is near living areas. Many modern fans feature quiet operation, with some models incorporating variable speed controls for precise airflow adjustment.
Step 4: Plan Airflow Direction
Effective ventilation follows the natural movement of air. Warm air rises, so design your system to pull air in through lower vents and exhaust it through the top. This creates a continuous cycle where fresh air enters at the plant level while warm, stale air exits above.
Position your exhaust fan near the tent’s ceiling, which is connected to the ducting that leads outside the tent. If using a carbon filter for odor control, install it inside the tent at the highest point, connected directly to your inline fan.
Step 5: Install Ducting & Connect The Fan
Begin by mounting your carbon filter (if using) inside the tent’s upper section. Connect it to your inline fan using flexible aluminum ducting, securing all joints with metal clamps to prevent air leaks. Run the ducting from the fan to your chosen exhaust point outside the tent.
For intake, you can use passive vents (simple openings with mesh screens) or install a second fan for active intake. Passive systems work well for most home setups, while active intake benefits larger or hotter grow spaces.
Step 6: Install Carbon Filter
While your inline fan handles air exchange, oscillating fans ensure proper circulation within the tent. Place one or two small fans at different heights, positioned to create gentle air movement across all plants. Avoid pointing fans directly at plants – instead, aim them at walls or slightly upward to create a natural breeze effect.
Step 7: Set Up Oscillating Fans For Internal Air Circulation
Regular maintenance keeps your system running efficiently. Clean your carbon filter every few months, check ducting for obstructions, and wipe fan blades to prevent dust buildup. Consider adding a speed controller to fine-tune airflow as your plants grow and their needs change.
By following these steps, you’ll create an ideal growing environment with proper temperature control, humidity regulation, and fresh air circulation – all essential for healthy, thriving plants.
Conclusion
Building a solid ventilation system in your grow tent isn’t just a nice-to-have—it’s a must. From choosing the right fan to installing ducting like a pro, following these steps will keep your grow space fresh, odor-free, and perfect for lush, healthy plants. Whether you’re growing tomatoes or something a bit more… fragrant, proper airflow is your secret weapon. Don’t skip it!
