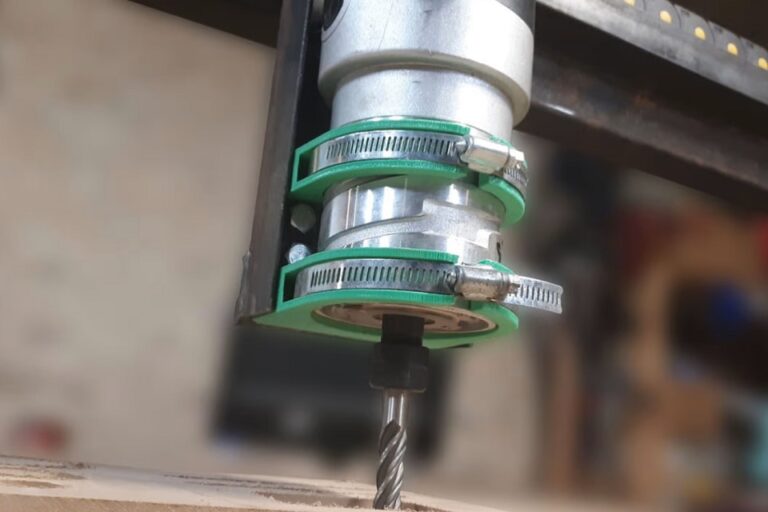

Choosing a suitable spindle motor for your CNC router is a crucial step in your project. While you should consider the type of spindle you want to use, you should also consider the motor’s output power since low output power can negatively impact processing and the life of the tool and workpiece.

High-Speed Steel

If you’re building a CNC router, consider purchasing a high-speed steel CNC router spindle motor. These motors can provide up to 24,000 RPM at 1.5 KW. They are geared to rotation clockwise and can be controlled by a variable-frequency drive (VFD). The kit comes with a pre-installed ER16 collet and a 0.002-inch runout.

One of the factors that determine spindle speed is the material being processed. If the material is rigid, it will require a slow rotation speed. On the other hand, soft metals require a higher spindle speed to avoid damaging the tool. Another factor to consider is the diameter of the device being processed. A high-speed spindle will have large bearings to support the increased power.

Stepper Motors

Stepper motors are used in CNC routers to provide precise positioning. They work by generating a magnetic field inside the motor’s coil. The intensity of this field varies according to the voltage and current limits of the stepper motor. Stepper motors are most efficient when their rated torque is less than their holding torque. They also feature a feedback mechanism that senses changes in shaft position and instantly corrects it. However, the torque generated by a stepper motor decreases with the increase in drive speed.

When choosing a stepper motor for a CNC router spindle, it is essential to consider the amount of torque the engine will need to produce. The holding torque of a stepper motor can vary anywhere from 30 oz-in to 1500 oz-in. It is crucial to keep in mind, nevertheless, that a high motor speed causes the holding torque to decrease. It is better to use a servo motor for heavy spindles.

Rotary Spindle

If you want to build a CNC router, the spindle motor is essential to the tool. These motors need to be robust and can handle more significant tasks. They require around 3.5 KW of power to run. You will get fully informed about CNC router spindles in this book, including what they are, how they operate, and how to maintain them properly.

The spindle motor frame is 174mm long and 82mm wide. It has a voltage-current of 220VAC and operates at a frequency of 0 to 300 Hz. The spindle motor has a cooling system that uses air to stay cool. It also has grease to lubricate the bearings. The spindle motors use two different sizes of bearings.

Carbide

If you’re looking for a reliable CNC router with a powerful spindle motor, Carbide 3D has you covered. The company has been manufacturing CNC routers for decades, and its machines have an impressive track record. The business has a sizable user base and a strong support staff.
